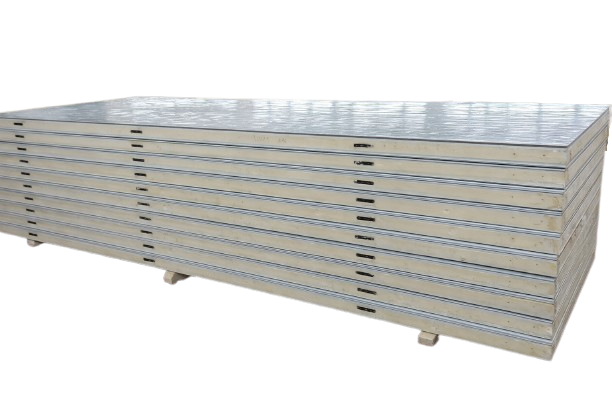

Cold Room Insulated Ceiling Panels
Seamless, airtight thermal insulation solutions engineered to perform as high-strength suspended ceilings for industrial cold storage.
Suspended Ceiling Thermal Solutions
SITC SMART insulated ceiling panels are specifically engineered to provide seamless, airtight thermal insulation from above. Designed to perform as a high-strength, sturdy suspended ceiling, these sandwich panels ensure maximum internal temperature retention for large cold rooms, deep freezers, and industrial food processing facilities.
Through precision factory engineering, our ceiling panels utilize integrated internal Cam-Lock hardware to mechanically bind adjacent spans together. This heavy-duty interlocking technology prevents ceiling sagging, shifting, or gap development over time, completely eliminating thermal bridges and upper-void moisture infiltration.
Structural Integrity & Hanging Systems
Evaporator Support Capability
High-density injected foam core and secure Cam-Lock joints provide exceptional structural load-bearing strength, allowing direct suspension of heavy cooling evaporators.
Suspension Compatibility
Engineered to integrate flawlessly with industrial hanging accessories, T-bars, connection profiles, and threaded rods used in large-scale logistics cold warehouses.
Anti-Deflection Engineering
Injected at optimal industrial density thresholds to successfully prevent panel warping or deflection caused by extreme indoor-outdoor thermal differentials.
Technical Specifications
| Sealing System | 100% Hermetic & Gas-Impermeable Barrier |
|---|---|
| Insulation Core Density | 40 (± 2) kg/m³ Polyurethane (PUR) |
| Chiller Leaf Thickness | 68 mm |
| Freezer Leaf Thickness | 92 mm |
| Shock Freezer Thickness | 120 mm |
| Locking Axis | Eccentric Stainless Steel Compression Shaft |
| Frame Profile | Heavy-Duty Corrosion-Resistant Anodized Aluminum |
| Safety System | Anti-Panic safety release with glow handle |
Ceiling Facings & Hygiene Compliance
Hygienic Surface Options
- PVC Coated Facings: Premier selection for cold room ceilings. Flawless defense against high condensation; repels bacterial/mold growth, supports rapid sanitization.
- Stainless Steel (Cr-Ni): Top-grade Chromium-Nickel alloys. Designated for meat processing plants, slaughterhouses, and sterile pharmaceutical environments.
Standard Option
- PPGI Coating: Premium Pre-Painted Galvanized Iron layered with high-grade, food-safe polyester paint systems.
Ceiling Architecture Applications
SITC SMART ceiling panels conform perfectly to rigorous hygiene and mechanical safety codes across global trade regions. Our engineering ensures complete structural synchronization between the ceiling panels, hanging grid support networks, and internal evaporator layout positions.
