Cold Room Sandwich Panels
High-performance insulation solutions engineered for superior thermal efficiency and structural integrity in cold storage.

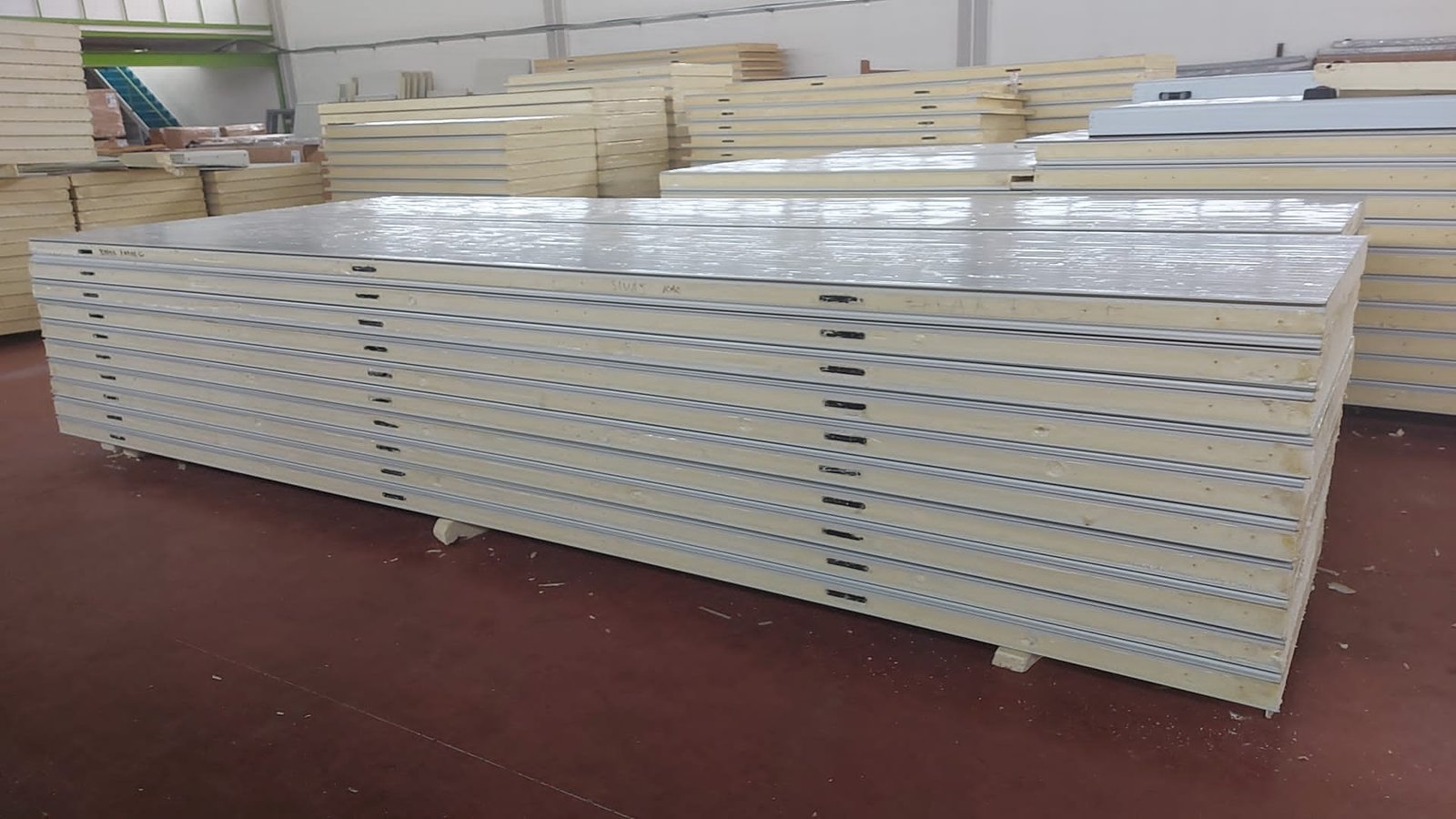

Precision Engineered Insulation
Our panels utilize high-density polyurethane (PUR/PIR) cores to provide maximum thermal resistance and durability for demanding industrial applications.
- Superior Thermal Efficiency - Low conductivity cores.
- Hygienic & Durable - Specialized surface coatings.
- Advanced Assembly - Easy-to-install Cam-Lock system.
Product Range
Application Suitability Matrix
| Panel Thickness | Temperature Range | Ideal Application |
|---|---|---|
| 60 mm | +5°C to +15°C | Processing Areas / Packing Rooms |
| 80 mm | 0°C to +10°C | Chilled Food Storage |
| 100 mm | -5°C to -10°C | General Cold Rooms |
| 120 mm | -15°C to -20°C | Deep Freeze Storage |
| 150 mm | -25°C to -30°C | Industrial Cold Warehouses |
| 200 mm | -35°C and below | Blast Freezing / High-Efficiency |
Detailed Technical Specifications
| Panel Width | 111 cm (Effective width) |
| Panel Length | Up to 13 meters (Customized) |
| Sheet Thickness | 0.40 mm / 0.50 mm (Galvanized Steel) |
| Core Density | 40 - 42 kg/m³ (PUR/PIR) |
| Thermal Conductivity | λ = 0.022 - 0.024 W/mK |
| Fire Rating | B1 / B2 Grade |
