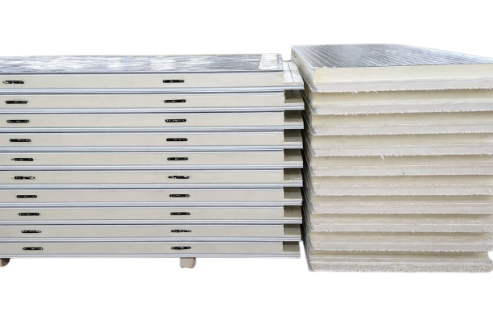

Cold Room Insulated Wall Panels
Advanced Cam-Lock sandwich panels engineered for high-efficiency cold rooms, delivering outstanding thermal insulation and structural integrity.
Advanced Cam-Lock Sandwich Panels
SITC SMART insulated sandwich wall panels are engineered specifically for high-efficiency cold rooms, freezer facilities, and industrial processing plants. Delivering outstanding thermal insulation and immense structural integrity, our panels utilize advanced automated production lines to satisfy precise technical and architectural project requirements.
Every panel is equipped with integrated internal Cam-Lock hardware mechanisms, enabling rapid on-site installation, a perfect structural fit, and absolute airtightness. This secure interlocking method eliminates joint weaknesses, vastly reducing energy losses and securing process sustainability.
Interlocking & Safety Features
Integrated Internal Cam-Lock
Panels are pulled mechanically and locked tightly together during assembly to guarantee a 100% moisture-tight and airtight seal.
Future Flexibility
Allows for seamless panel disassembly, room expansion, or facility relocation without causing physical damage to the panels.
Self-Extinguishing Core
Formulated with fire-retardant additives causing the panel core to self-extinguish as soon as external flame sources are removed.
Certified Fire Ratings
Available in standard B2 class (DIN 4102 flame-resistant) or premium B1 / PIR high-safety options upon customer request.
Technical Specifications
| Fixed Panel Width | 111 cm (Optimized to minimize joints) |
|---|---|
| Maximum Panel Length | Up to 13 Meters Continuous |
| Length Customization | Precisely cut to match required room height |
| Available Thicknesses | 60 | 80 | 100 | 120 | 150 | 180 | 200 mm |
| Sheet Metal Thickness | 0.50 mm (Heavy-Duty) / 0.40 mm (Economic) |
| Insulation Core Material | Polyurethane (PUR) / Polyisocyanurate (PIR) |
| Available Insulation Densities | 38 kg/m³ (Standard) | 42 kg/m³ (Heavy Industrial) |
| Standard Locking Mechanism | Integrated Eccentric Cam-Lock System |
Sheet Metal Facing Options
Hygienic Options
- PVC Coated Galvanized Steel: Exceptional resistance to intense humidity, chemical reactions, and physical scratches. Highly hygienic and perfectly optimized for food manufacturing facilities.
- Stainless Steel (Cr-Ni): Crafted out of premium Chromium-Nickel alloys. The premier choice for medical/pharmaceutical warehouses and processing units requiring daily chemical washdowns.
Standard Options
- Pre-Painted Galvanized Iron (PPGI): Coated with durable, certified food-safe polyester coatings for standard industrial or commercial storage layouts.
Panel Thickness & Application Matrix
60 mm – 80 mm
Positive Chiller Rooms (0°C to +10°C)
- Fresh fruit and vegetable storage
- Dairy, milk, and cheese processing
- Pharmaceutical & medical cold rooms
- Pastry and chocolate production
100 mm – 120 mm
Negative Freezer Rooms (-18°C to -25°C)
- Frozen meat and poultry holding
- Fish and seafood freezing plants
- Industrial frozen food warehouses
- Long-term deep freeze units
150 mm – 200 mm
Shock & Blast Freezers (-30°C to -45°C)
- Industrial blast freezing chambers
- Ice cream storage centers
- Prevents structural thermal stress
- Optimizes compressor performance
